 Novellini Young PLUS G+F inline hinged shower door

enclosure for a wide alcove or corner

 Novellini Young PLUS shower door with inline fixed panel

Index > Shower Enclosures > Novellini > Young PLUS G+F inline wide alcove shower door

Novellini Young PLUS Hinged door with fixed inline panel

The Novellini Young PLUS range is an exclusive variant of the very popular Young 2.0 range.

These modern minimalist shower enclosures are 2000mm tall and equipped with 8mm thick glass, although custom sizes can be ordered. Available with a choice of Matt Black, Silver, Brushed Inox or Chrome coloured profiles and clear glass which is toughened and coated to resist lime scale.

The YOUNG PLUS G+F inline is a shower enclosure comprising a hinged door with a fixed inline panel designed for use in alcoves from 1000mm wide up to an impressive 1800mm wide. The door is supported on the opposite wall to the fixed inline panel against which it closes with a full length magnetic seal.

The YOUNG PLUS G+F inline can also be used in a corner setting by adding a fixed end panel.

The illustrations show the G+F Inline enclosure in Chrome finish (top) and Silver finish.

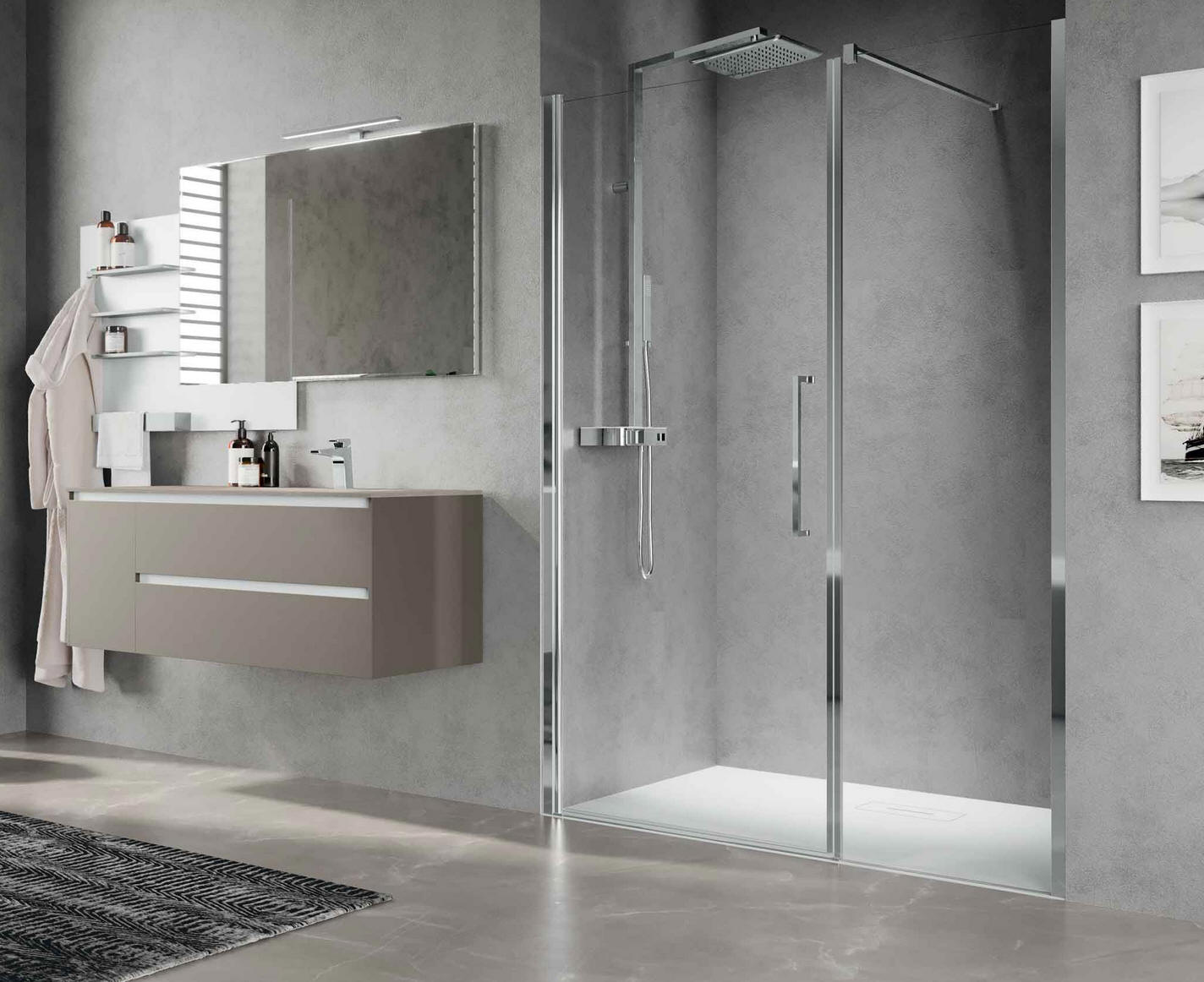

Novellini YOUNG PLUS hinged door with inline fixed panel - shown in chrome finish

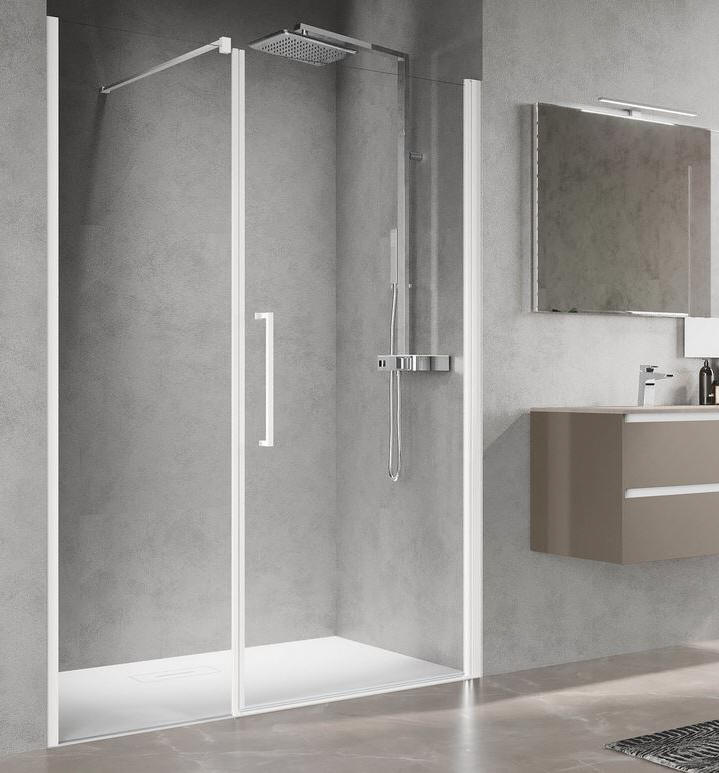

Novellini YOUNG PLUS hinged door with inline fixed panel - shown in silver finish

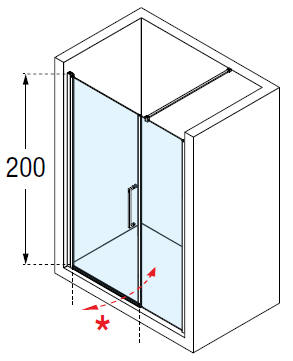

Novellini YOUNG PLUS hinged door with inline fixed panel diagram

The Novellini Young PLUS G+F hinged shower door which closes against its inline counterpart. The door swings inward and outward.

Fitted with a magnetic door seal and rising hinge, the enclosure can be used with a shower tray or on a wet room floor that has been tiled or covered in vinyl non slip floor covering.

The bottom seal differs according to application. Please state which you require.

Optional 'wiper' seal if door is installed without supplied threshold



Shower in an ALCOVE setting

NOVELLINI YOUNG PLUS G+F Inline

Left Handed

Right Handed

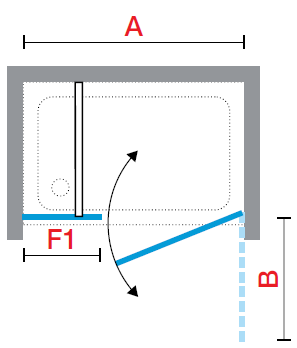

Novellini YOUNG PLUS hinged door with inline fixed panel left hand dia

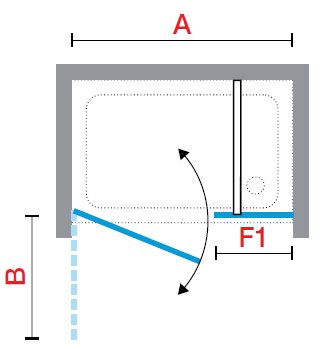

Novellini YOUNG PLUS hinged door with inline fixed panel right hand dia
  Overall Width   Fixed Panel Access Price inc VAT
(mm) A   F1 * Profile colour
  from to       Silver Chrome/Matt Black/Matt White Inox

1100 980 1020   330 580 £629.46 £696.54 £871.26
1150 1040 1080   330 640 £638.82 £707.46 £884.52
1200 1080 1120   330 680 £638.82 £707.46 £884.52
1350 1150 1190   400 680 £655.20 £725.40 £907.14
1400 1180 1220   430 680 £655.20 £725.40 £907.14
1500 1350 1390   500 780 £732.42 £811.20 £1,014.00
1550 1380 1420   530 780 £732.42 £811.20 £1,014.00
1600 1480 1520   630 780 £751.14 £832.26 £1,040.52
1650 1550 1590   700 780 £775.32 £858.00 £1,072.50
1700 1580 1620   630 880 £775.32 £858.00 £1,072.50
1800 1650 1690   700 880 £786.24 £871.26 £1,089.66
1700 1680 1720   730 880 £786.24 £871.26 £1,089.66
1800 1780 1820   830 880 £795.60 £881.40 £1,102.14

 Note: The profile colour MATT WHITE is available to special order.
                Order
Special Size   Bespoke sizes are available to Special Order

H - 1400-2200mm   Special Order POA POA POA
W - 700-2000mm
100926

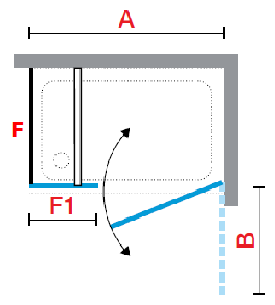

Shower in a CORNER setting

NOVELLINI YOUNG PLUS F1B

(Fixed End Panel)

Although the YOUNG PLUS G+F Inline door may be used in an alcove (recess) it can be

used in a corner setting with the addition of a fixed end panel.

The fixed end panel is specific to this door and is known as the F1B.

Sizes and prices as follows:


Door must be supported by adjacent wall. It may not hinge from fixed panel.

NOVELLINI YOUNG PLUS F1B Pricelist


  Overall Width       Price inc VAT
(mm) F       Profile colour
  from to       Silver Chrome/Matt Black/Matt White Inox

600 570 590       £340.08 £375.96 £470.34
700 670 690       £360.36 £399.36 £499.20
700 690 710       £360.36 £399.36 £499.20
800 770 790       £385.32 £425.88 £532.74
800 790 810       £385.32 £425.88 £532.74
900 870 890       £407.94 £450.84 £563.94
900 890 910       £407.94 £450.84 £563.94
1000 970 990       £429.00 £475.02 £594.36
1000 990 1010       £429.00 £475.02 £594.36
1200 1170 1190       £429.00 £475.02 £594.36
1200 1190 1210       £429.00 £475.02 £594.36


Note:

The profile colour MATT WHITE is available to special order. The price is the same as Matt Black.

Special Size   Bespoke sizes are available to Special Order

H - 1400-2200mm   Special Order POA POA POA
W - 600-1200mm








Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Matt Black

Chrome

Silver

Brushed Inox



Black frame option

Chrome frame option

Sliver frame option

Brushed Inox colour option. A brushed finish with a colour similar to that of gun metal.

Glass Type

Clear









Clear glass sample









Product Literature
Product data sheet Installation Handbook 1
